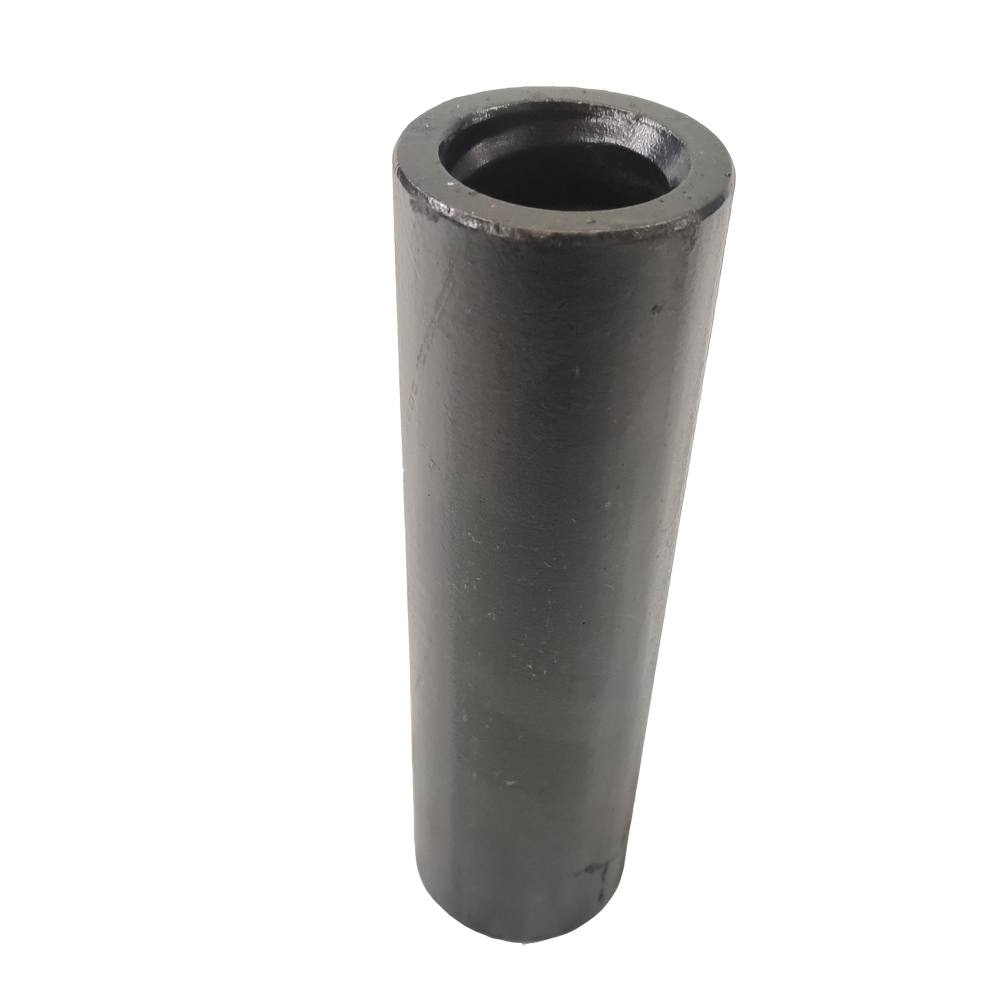

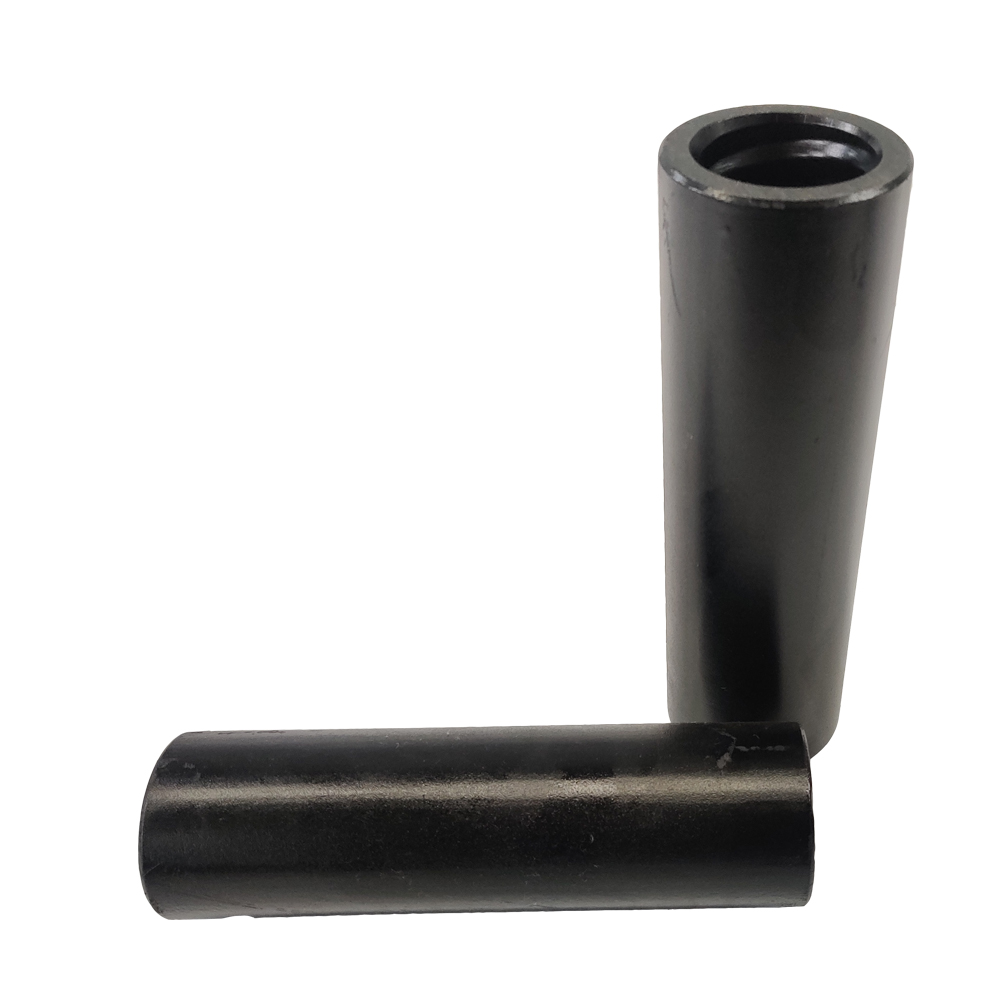

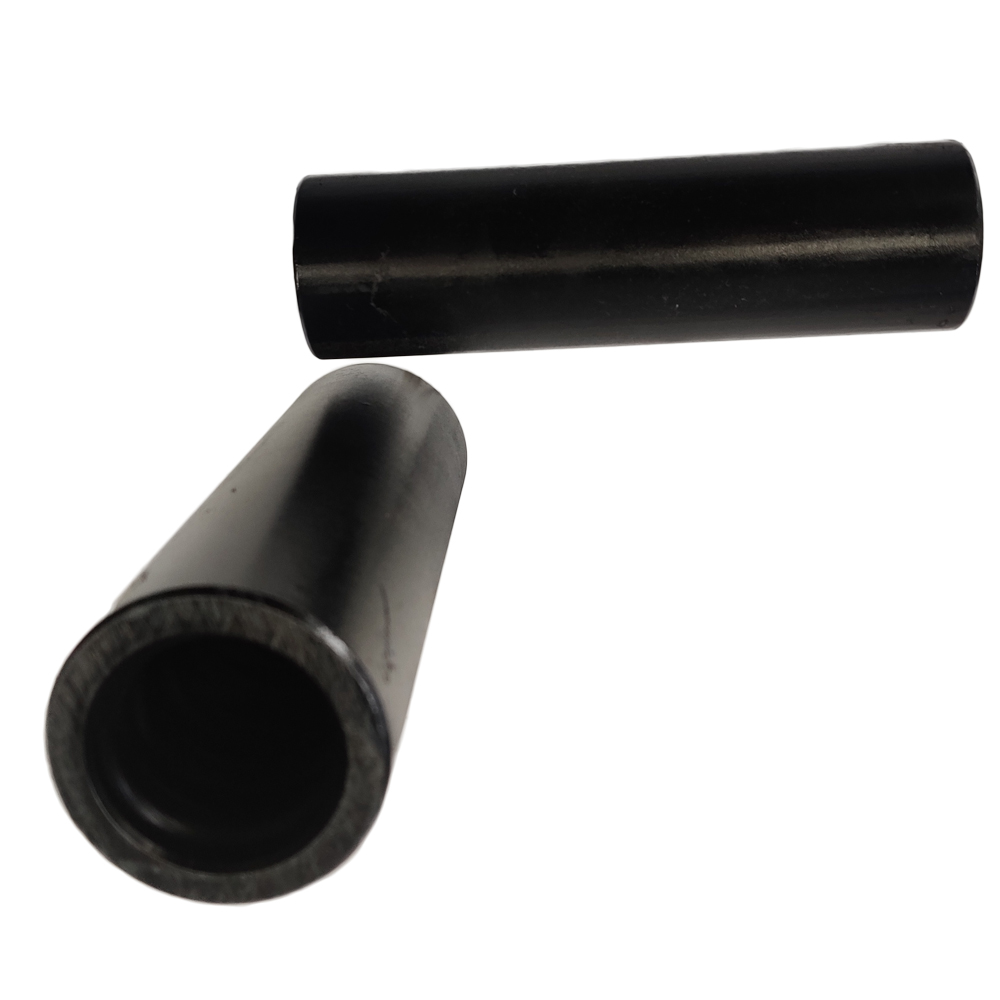

Coupling sleeve
Product features
Thread: R22, R25, R28, R32, R38, T38, T45, T51...Color:yellow,blue,black or others.
Size:R22,R25,R28,R32,R35,T38,T45,T51,T60.
Length: 140mm-315mm.
used with : thread rod.
Used:stone quarry/mining.
Cutting
Polish&Drill
+
Mining
Machines
A special tool for tightening or unscrewing screws. It consists of several inner hexagonal sleeves and one or several upper sleeve handles. The inner hexagons of the sleeve are arranged in sequence according to the model of the bolt and can be selected according to needs. A water pipe connection fitting, which can be used for the connection between steel pipes and cast iron pipes, etc.Rebar connection sleeve, a special product for mechanical connection of steel bars, which is divided into cold extrusion sleeve, tapered thread sleeve and straight Threaded sleeve.
|
Coupling sleeve |
|||||||
|
Thread |
Diameter |
Length |
Part Number |
Weight |
|||
|
A |
B |
mm |
inch |
mm |
inch |
|
Kg |
|
R25 |
R32 |
45 |
13/4 |
170 |
657/64 |
CPR25R32L170D45 |
1.10 |
|
R28 |
R32 |
45 |
13/4 |
170 |
657/64 |
CPR28R32L170D45 |
0.96 |
|
R32 |
R38 |
55 |
25/32 |
180 |
71/8 |
CPR32R38L180D55 |
1.86 |
|
R32 |
T38 |
55 |
25/32 |
180 |
71/8 |
CPR32T38L180D55 |
2.10 |
|
R38 |
T38 |
55 |
25/32 |
190 |
733/64 |
CPR38T38L190D55 |
1.86 |
|
R25 |
35 |
119/50 |
150 |
59/10 |
CPR25L150D35 |
0.72 |
|
|
R28 |
40 |
129/50 |
155 |
61/10 |
CPR28L155D40 |
0.95 |
|
|
R32 |
45 |
13/4 |
170 |
657/64 |
CPR32L170D45 |
1.32 |
|
|
R38 |
55 |
25/32 |
170 |
657/64 |
CPR38L170D55 |
1.71 |
|
|
T38 |
55 |
25/32 |
190 |
733/64 |
CPT38L190D55 |
1.96 |
|
|
T45 |
63 |
215/32 |
210 |
817/64 |
CPT45L210D63 |
3.12 |
|
|
T45 |
66 |
219/32 |
210 |
817/64 |
CPT45L210D66 |
3.51 |
|
|
T51 |
72 |
27/8 |
235 |
91/4 |
CPT51L235D72 |
5.22 |
|
|
T51 |
76 |
3 |
235 |
91/4 |
CPT51L235D76 |
5.75 |
|
