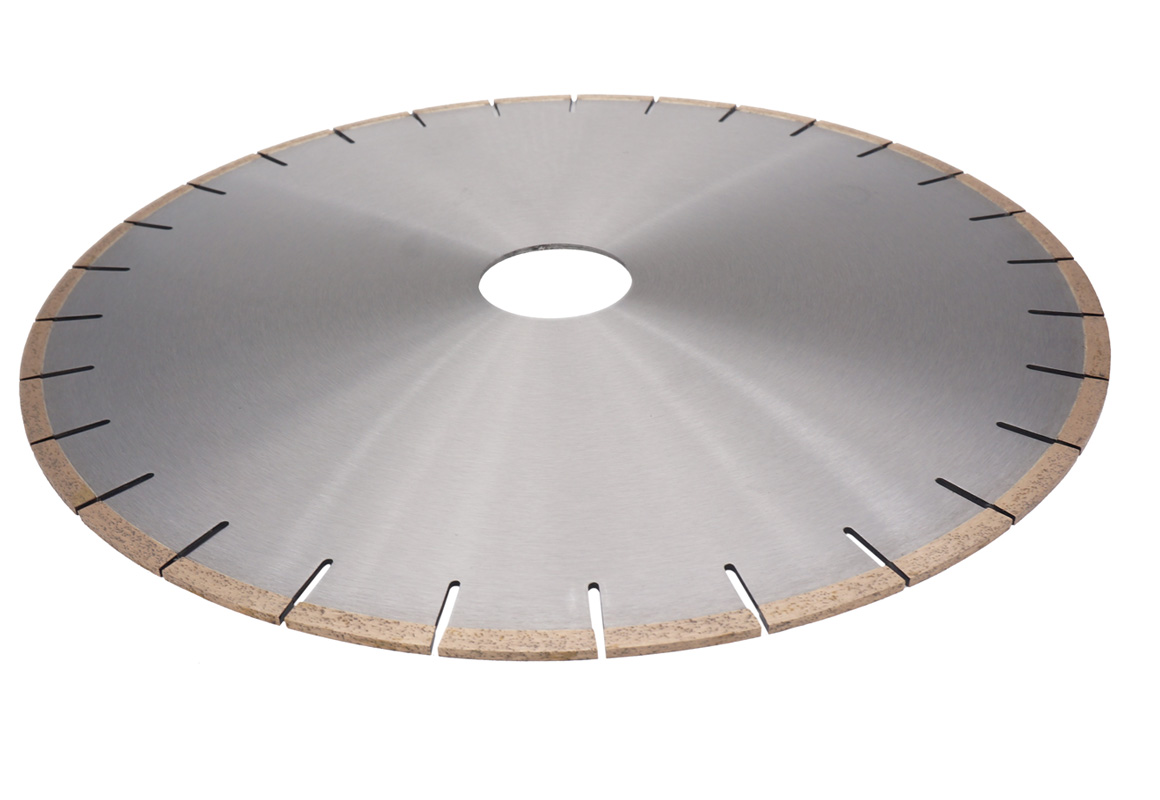

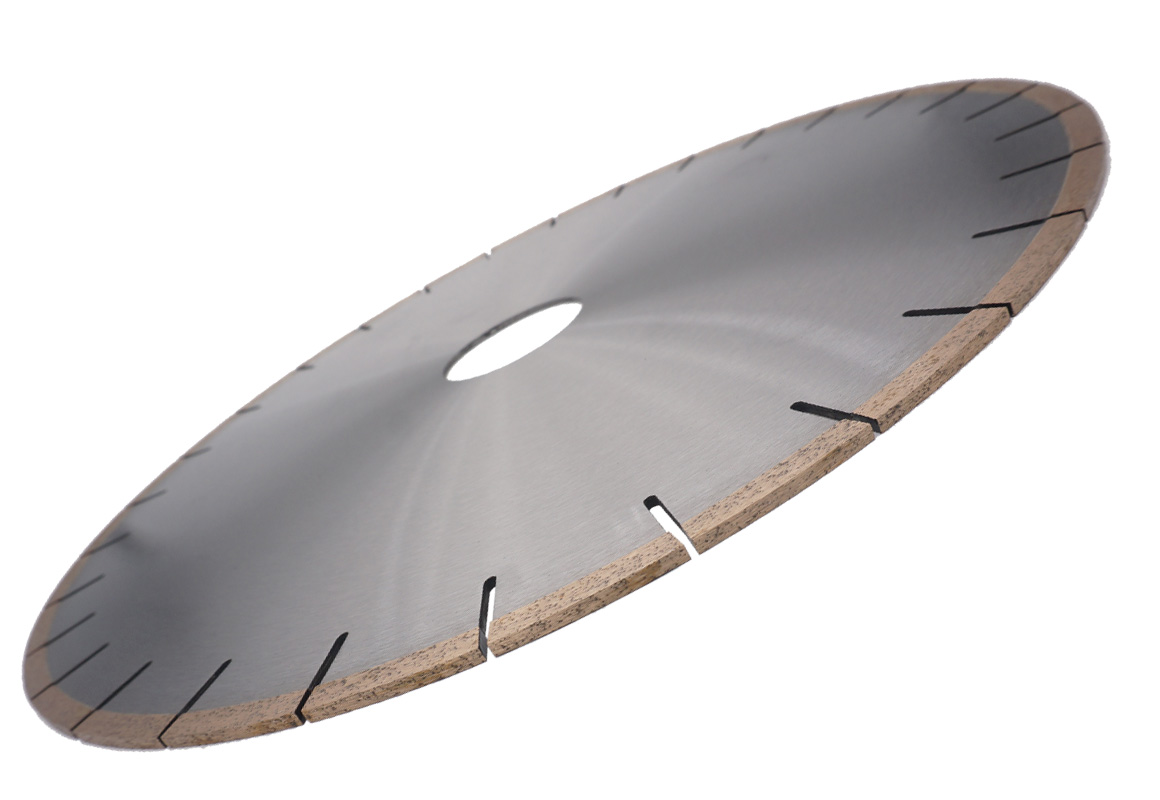

Diamond saw blade for marble cutting
Porduct features:
1. Cutting in high speed without chipping.2. Long life span and stable cutting performance.
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening.
5. Strict product quality inspection processes.
6. High cost-effective.
Polish&Drill
+Product description:
Segment for edge cutting.Segment for splitting.
Segment for single blade block cutting.
Product name | Diamond saw blade for marble cutting |
Use for | Marble/limestone or other soft stone,etc |
Segment shape | Rectangle shape |
Supply Ability | 6,000,000 Pcs/Month |
Factory | More than 26 years experience |
Delivery time | 7~15days after payment received |
Diameter(mm) | Steel Core Thickness(mm) | Segment Dimension (mm) | Segment No. |
Φ300 | 2.2 | 40×3.2×8(10) | 22 |
Φ350 | 2.4 | 40×3.4×8(10) | 25 |
Φ400 | 2.6 | 40×3.6×8(10) | 29 |
Φ450 | 2.8/3.0 | 40×4.0×8(10) | 32 |
Φ500 | 3.0/3.2 | 40×4.2×8(10) | 36 |
Φ600 | 3.6/3.8 | 40×4.8×8(10) | 42 |
Φ700 | 4 | 40×5.2×8(10) | 50 |
Φ800 | 4.5 | 40×6.0×8(10) | 46/57 |
Φ900 | 5.0 | 24×7.5×8(10,12) | 64 |
Φ1000 | 5.0 | 24×7.5×8(10,12) | 70 |
Φ1200 | 5.5 | 24×8.5×8(10,12) | 80 |
Φ1300 | 6.0 | 24×8.5×8(10,12) | 88 |
Φ1400 | 6.5 | 24×9.0×8(10,12) | 92 |
Φ1600 | 7.2 | 24×9.5×8(10,12) | 108 |
Φ1800 | 7.5 | 24×10.0×8(10,12) | 120 |
Φ2000 | 8.0 | 24×10.5×8(10,12) | 128 |
Φ2200 | 9.0 | 24×11.0×8(10,12) | 132 |
Φ2500 | 9.0 | 24×11.0×8(10,12) | 140 |
Φ3000 | 9.5 | 24×12.0×8(10,12) | 160 |
