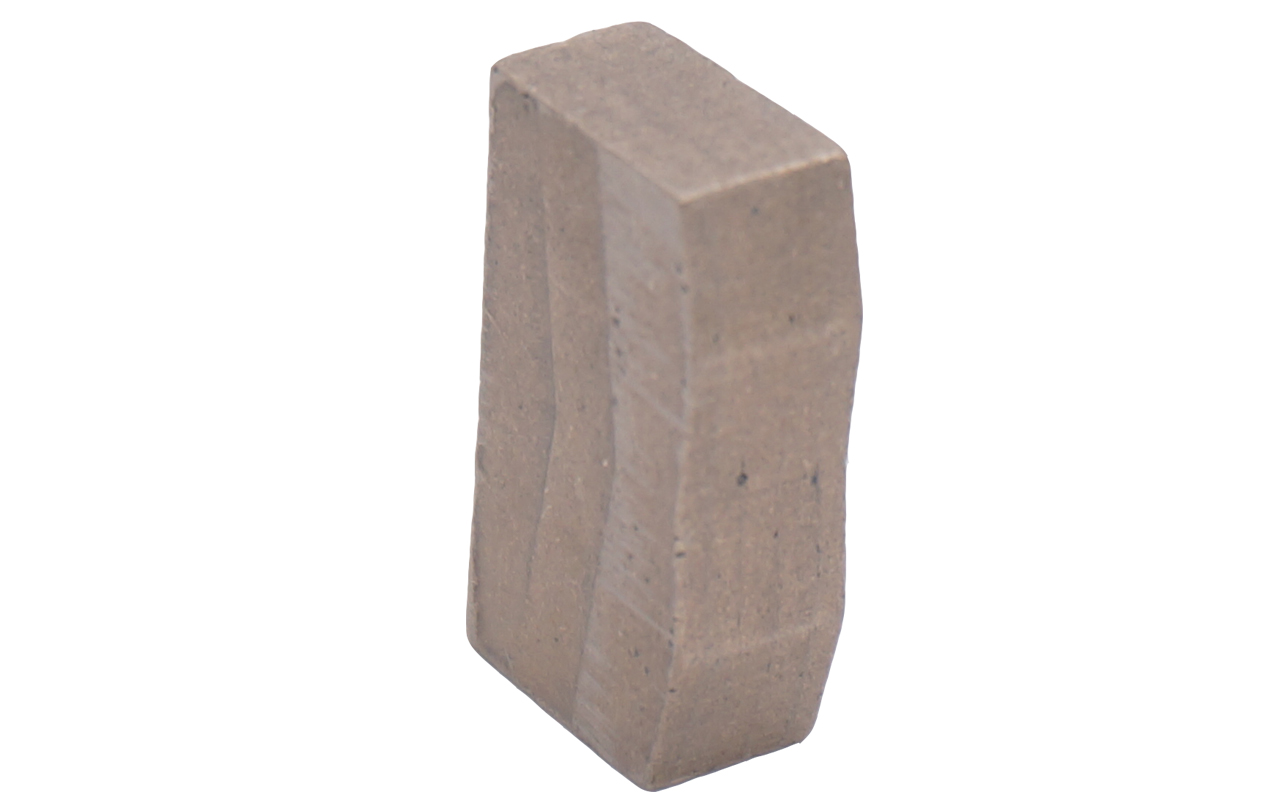

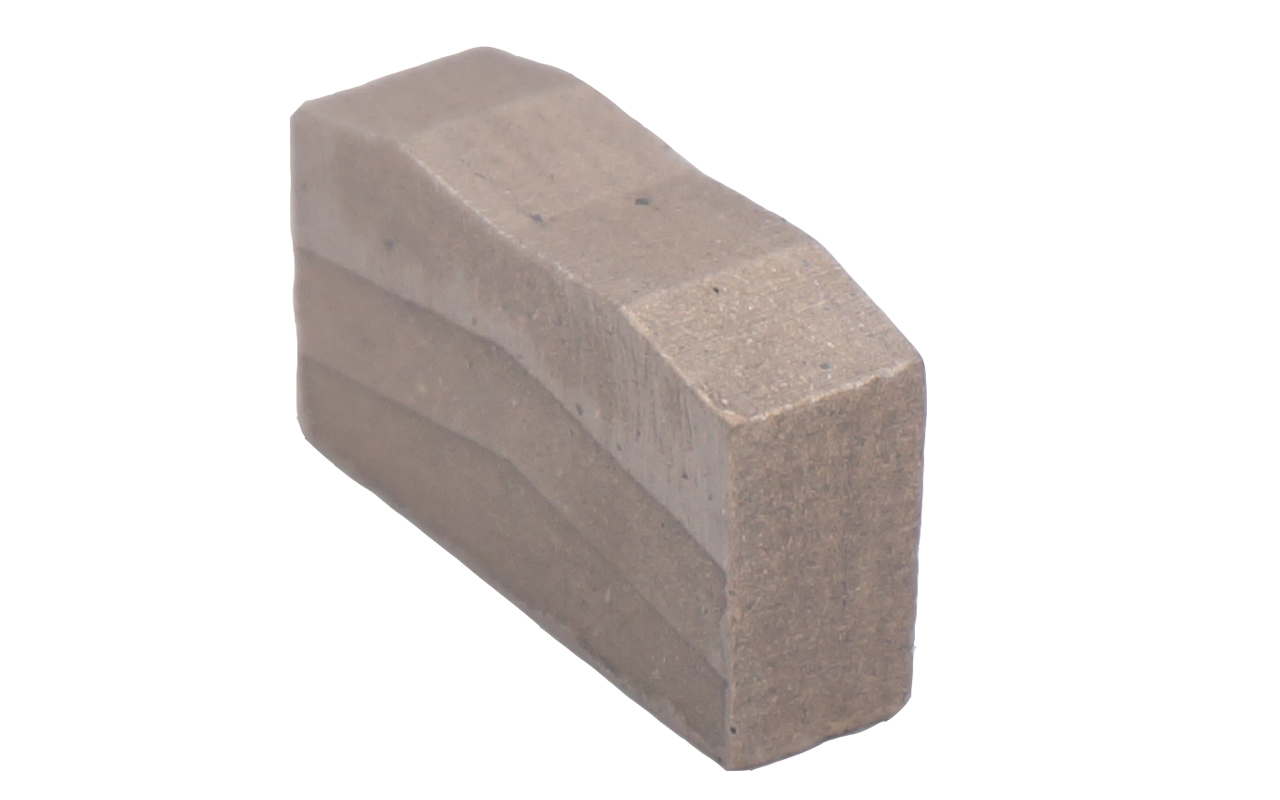

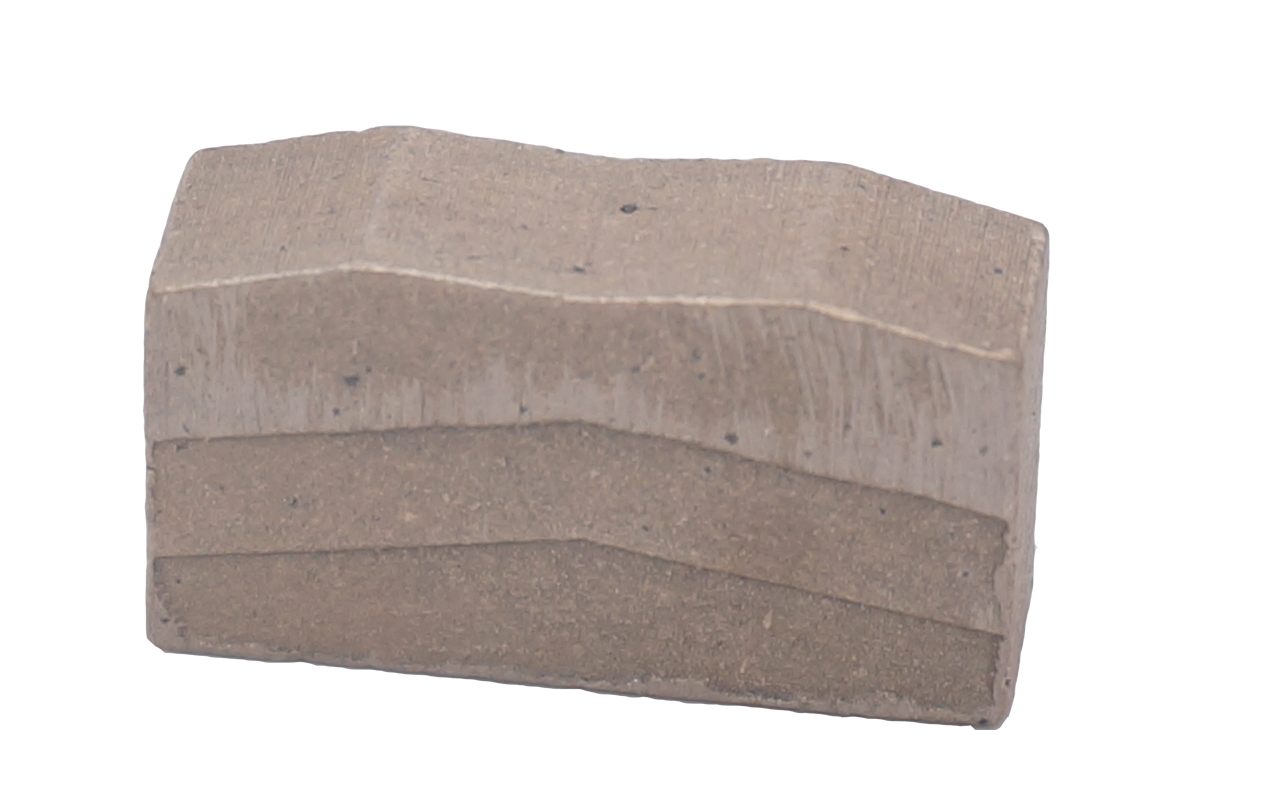

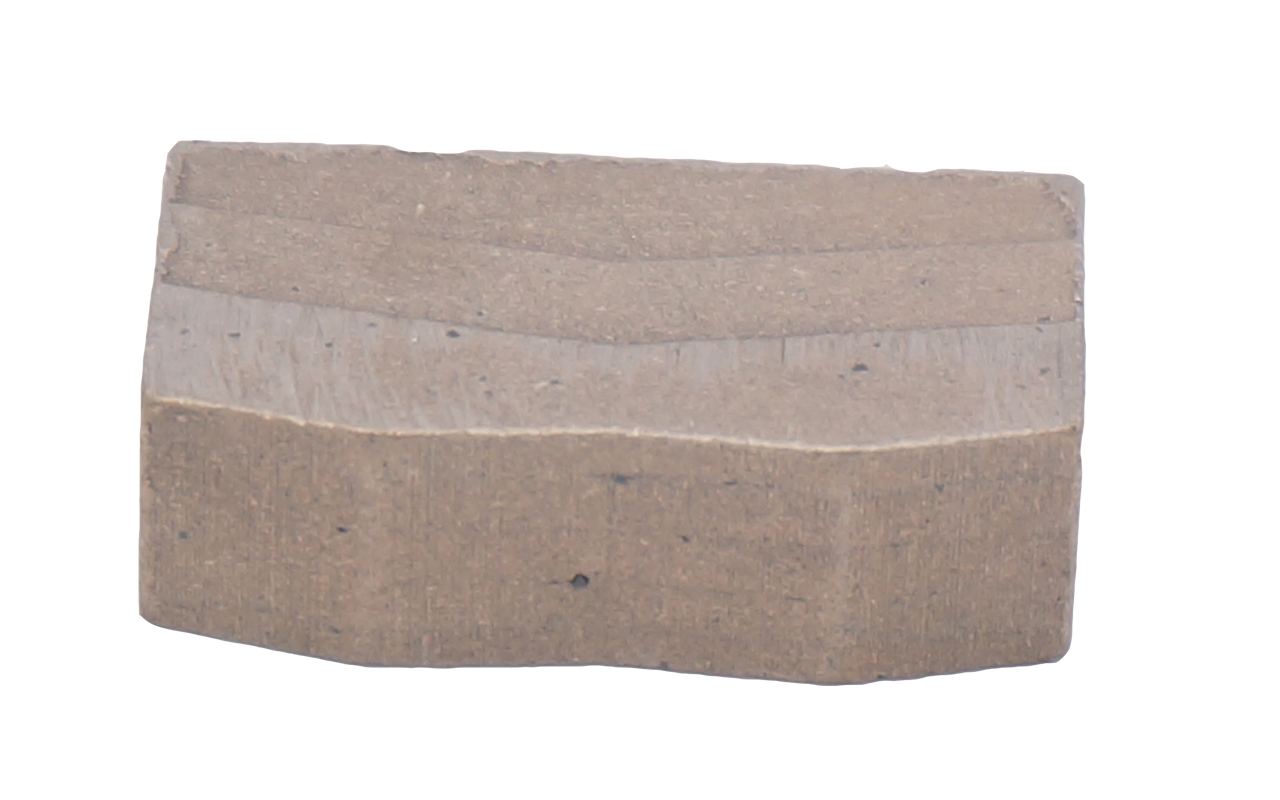

Diamond segments for granite cutting
Product features:
1. Good sharpness cutting in high speed without chipping less noise in work and save power.2. Long life span, high cost-effective and stable cutting performance.
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening.
Cutting
Polish&Drill
+
Mining
Machines
Product application
Segment for edge cutting D250-D600.Segment for splitting D450-D900.
Segment for D1200mm Multiblade block cutting 24*7.4/6.6*15.
Segment for Chinese Multiblade machine block cutting 24*8.4/7.6*15.
Segment for D2500-3000mm single blade block cutting 24*11.5/12.5*20(26 30).
Product Description
| Product name | Diamond segment for Stone |
| Use for | Granite/Sandstone/Quartz/Lava stone/Andesite, etc. |
| Segment shape | Trapezoid, Rectangle, W/M/etc. |
| Segment sharp | Sandwich, Layer, etc. |
| Supply Ability | 6,000,000 Pcs/Month |
| Factory | More than 17 years’ experience |
| Delivery time | 7~15 days after payment received. |
Product size
| Diameter(mm) | Steel Core Thickness(mm) | Segment Dimension (mm) | Segment No. |
| Φ250 | 2.2 | 40×3.2×10(15,20) | 17 |
| Φ300 | 2.2 | 40×3.2×10(15,20) | 21 |
| Φ350 | 2.2/2.4 | 40×3.4×10(15,20) | 24 |
| Φ400 | 2.6 | 40×3.6×10(15,20) | 28 |
| Φ450 | 2.8/3.0 | 40×4.0×10(15,20) | 32 |
| Φ500 | 3.0/3.2 | 40×4.2×10(15,20) | 36 |
| Φ600 | 3.6/3.8 | 40×4.8×10(15,20) | 36/42 |
| Φ700 | 4 | 40×5.2×10(15,20) | 42 |
| Φ800 | 4.5 | 40×6.0×10(15,20) | 46 |
| Φ900 | 5.0 | 24×7.0/6.4×15(20) | 64 |
| Φ1000 | 5.0 | 24×7.0/6.4×15(20) | 70 |
| Φ1200 | 5.5 | 24×8.0/7.4×15(20) | 80 |
| Φ1300 | 6.0 | 24×8.4/7.8×15(20) | 88 |
| Φ1400 | 6.5 | 24×8.4/7.8×15(20) | 92 |
| Φ1600 | 7.2 | 24×9.2/8.4×15(20) | 108 |
| Φ1800 | 7.5 | 24×10.0/9.0×15(20) | 120 |
| Φ2000 | 8.0 | 24×10.5/9.5×15(20,25) | 128 |
| Φ2200 | 9.0 | 24×11.0/10.0×15(20,25) | 132 |
| Φ2500 | 9.0 | 24×11.5/10.5×15(20,25) | 140 |
| Φ3000 | 9.5 | 24×12.5/13.5×20(25,30) | 160 |
| Φ3500 | 9.5 | 24×13.5/14.5×20(25,30) | 180 |
