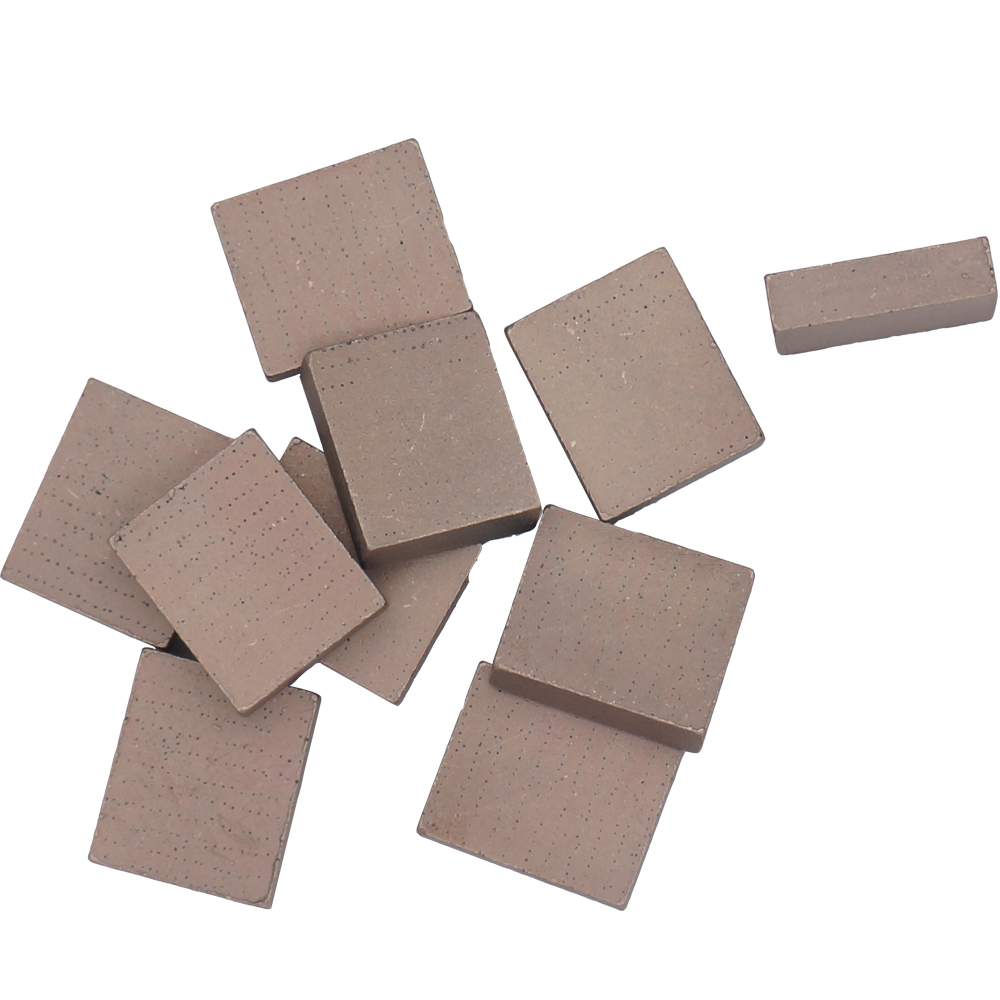

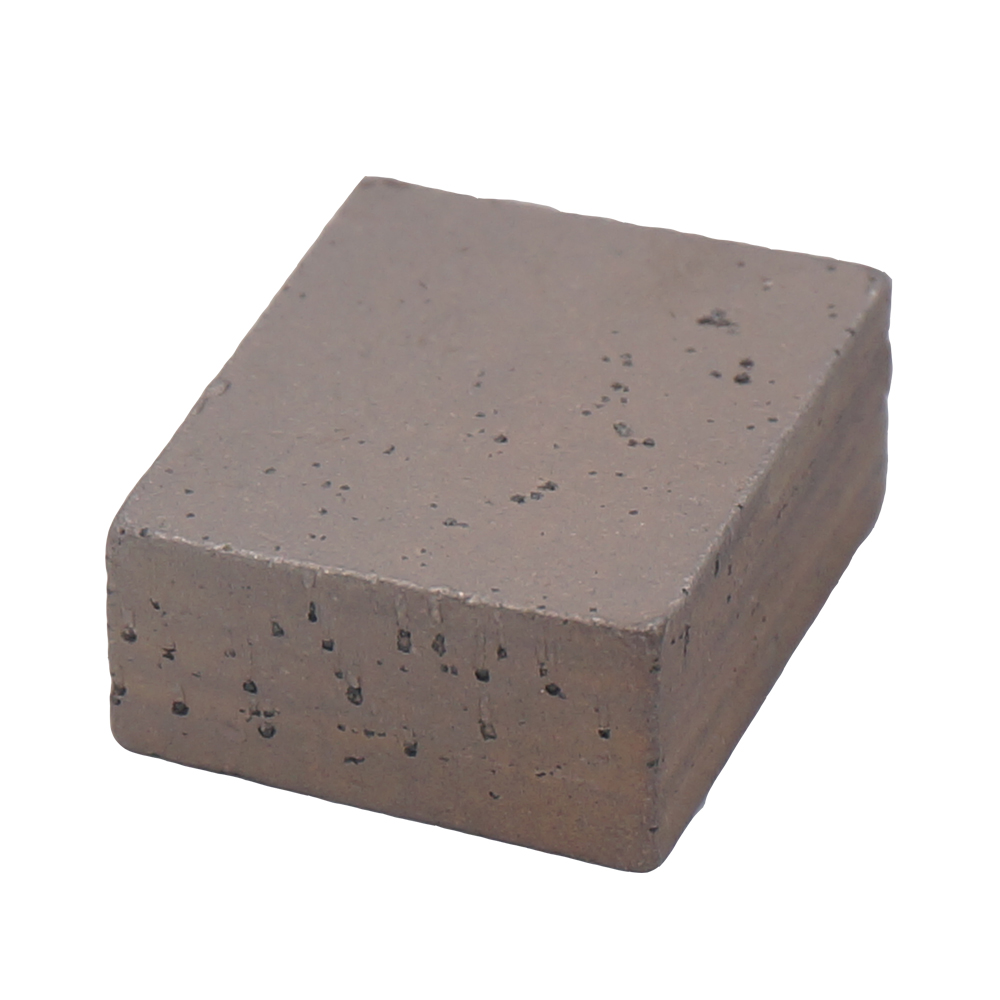

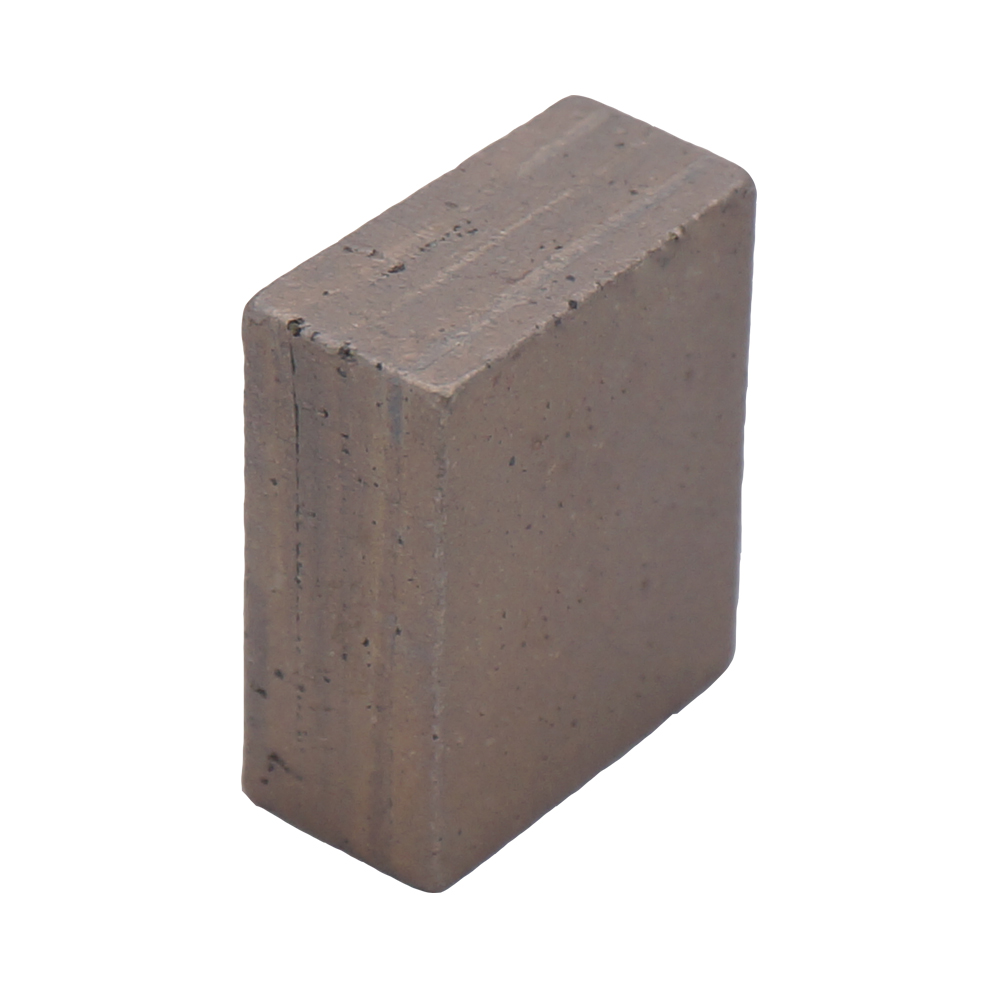

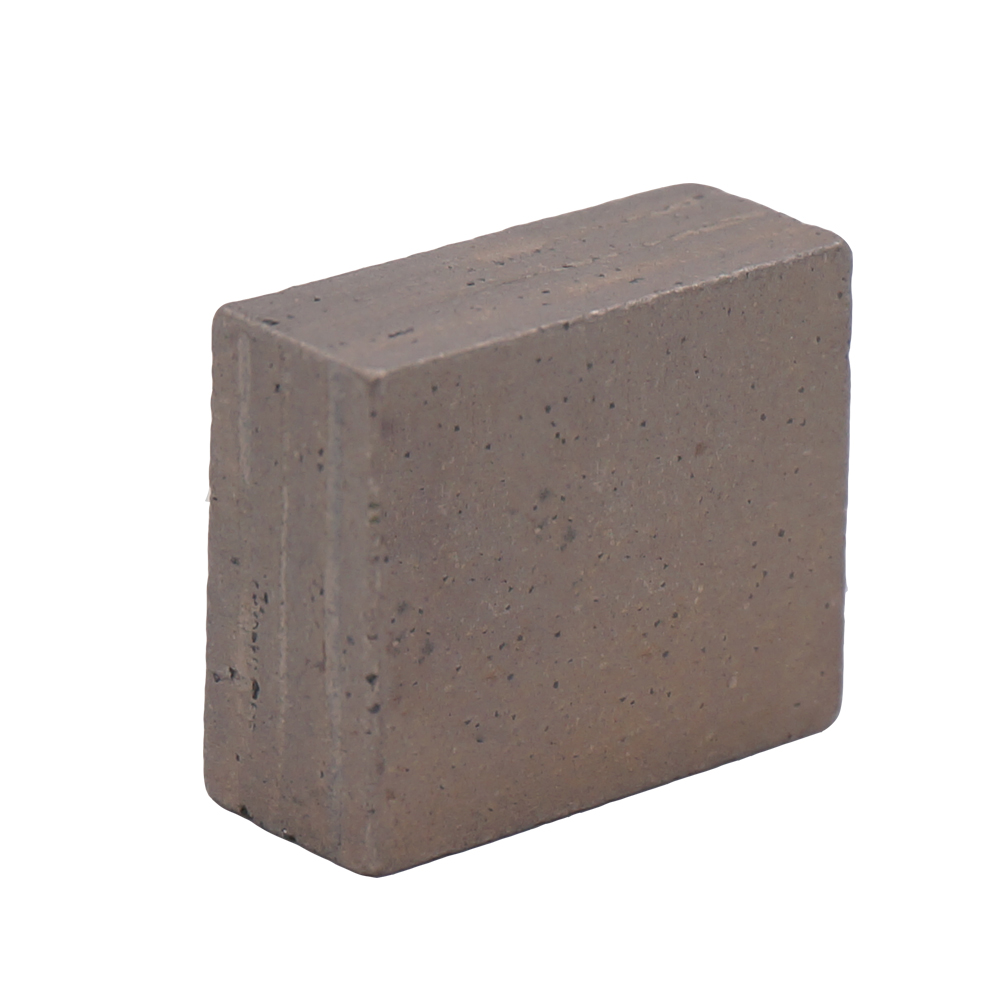

Diamond segments for marble cutting
Product features:
1. Cutting in high speed without chipping.2. Long life span, high cost-effective and stable cutting performance.
3. Smooth cutting flat surface and even size cutting result.
4. Good segment shape easy for diamond opening.
5. Strict product quality inspection processes.
Cutting
Polish&Drill
+
Mining
Machines
Product application
For marble cutting saw blade (edge cutting, splitting, block cutting):
Product Description
| Product name | Diamond segment for stone |
| Use for | Marble/limestone or other soft stone,etc |
| Segment shape | Rectangle/short-R,shape,etc |
| Supply Ability | 6,000,000 Pcs/Month |
| Factory | More than 26 years experience |
| Delivery time | 7~15days after payment received |
Product size
| Diameter (mm) | Steel Core Thickness(mm) | Segment Dimension (mm) | Segment No. |
| Φ300 | 2.2 | 40×3.2×8(10) | 22 |
| Φ350 | 2.4 | 40×3.4×8(10) | 25 |
| Φ400 | 2.6 | 40×3.6×8(10) | 29 |
| Φ450 | 2.8/3.0 | 40×4.0×8(10) | 32 |
| Φ500 | 3.0/3.2 | 40×4.2×8(10) | 36 |
| Φ600 | 3.6/3.8 | 40×4.8×8(10) | 42 |
| Φ700 | 4 | 40×5.2×8(10) | 42 |
| Φ800 | 4.5 | 40×6.0×8(10) | 46/57 |
| Φ900 | 5.0 | 24×7.5×8(10,12) | 64 |
| Φ1000 | 5.0 | 24×7.5×8(10,12) | 70 |
| Φ1200 | 5.5 | 24×8.5×8(10,12) | 80 |
| Φ1300 | 6.0 | 24×8.5×8(10,12) | 88 |
| Φ1400 | 6.5 | 24×9.0×8(10,12) | 92 |
| Φ1600 | 7.2 | 24×9.5×8(10,12) | 108 |
| Φ1800 | 7.5 | 24×10.0×8(10,12) | 120 |
| Φ2000 | 8.0 | 24×10.5×8(10,12) | 128 |
| Φ2200 | 9.0 | 24×11.0×8(10,12) | 132 |
| Φ2500 | 9.0 | 24×11.0×8(10,12) | 140 |
| Φ3000 | 9.5 | 24×12.0×8(10,12) | 160 |
Other specifications on request available.
