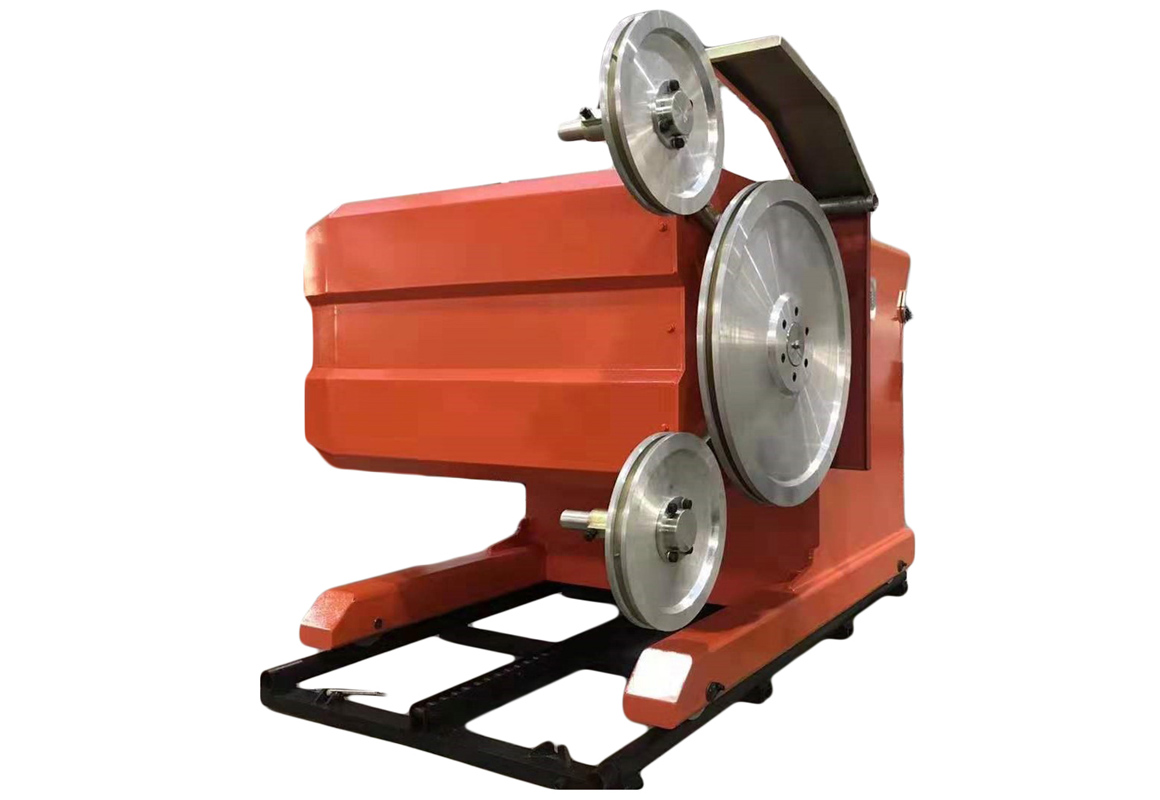

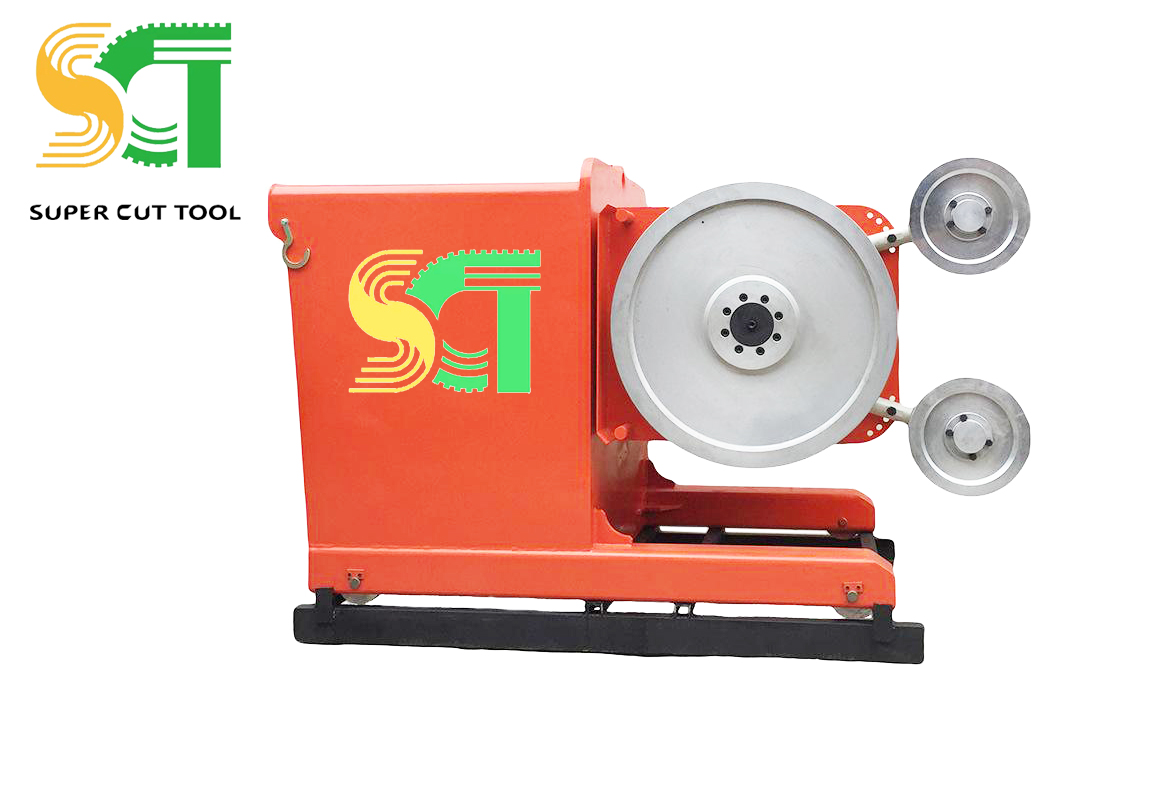

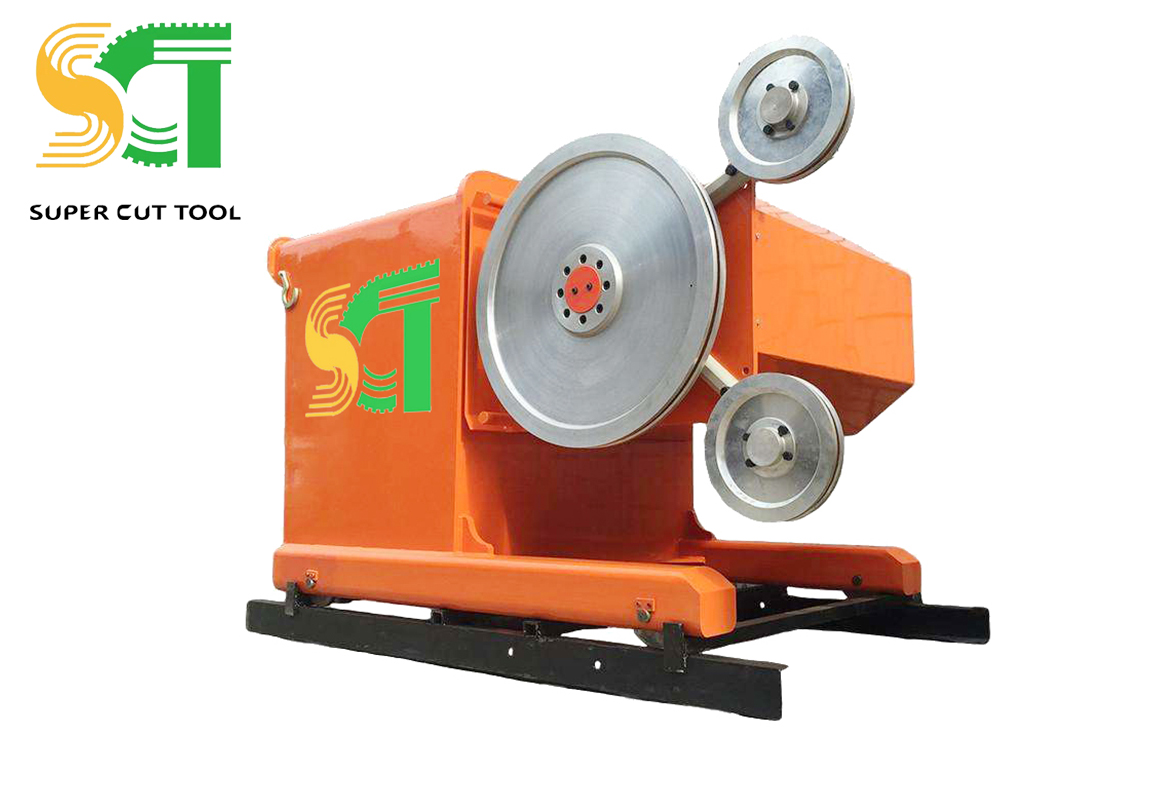

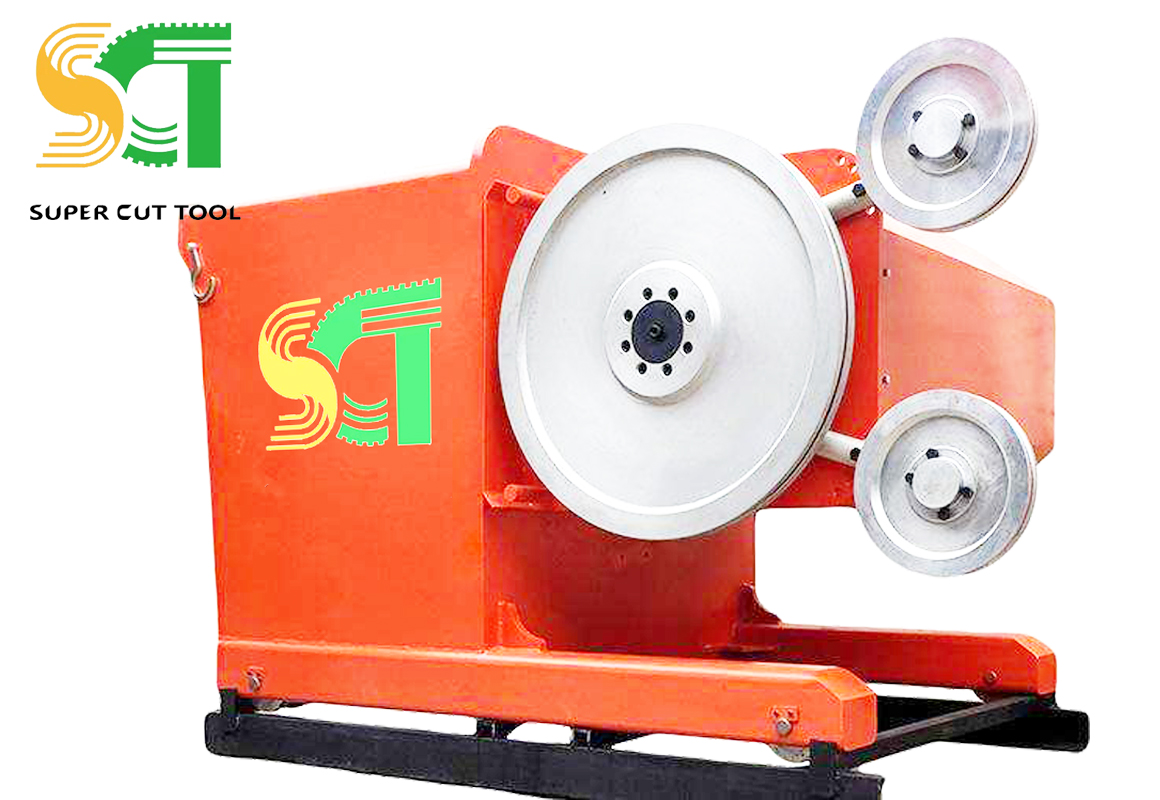

Diamond wire saw machine for quarry
Product features:
Suitable for quarryingIt can cut a larger size stone, making higher stone yield rate
Faster mining, more environmentally friendly and energy saving than traditional mining methods
Semi-automatic processing, cheap machinery, stable performance
With our diamond wire, you can have a better cutting performance
Cutting
Polish&Drill
+
Mining
Machines
Product description:
The wire saw has unparalleled advantages in quarry mining, such as higher efficiency (saving manpower and time), cutting a larger surface (the largest cutting surface can reach hundreds of squares), and adjusting the angle arbitrarily (as much as possible make full use stone), save stone resources (cutting loss of wire saw is lower than other processing tools) and so on. Therefore, it is widely used in modern quarry mining. Coupled with our company's wire saw machine, the low price and long service life make this wire saw machine the only choice for mining machinery.1. Main flywheel can rotate 360° and move sideways automatically.
2. Protective function when wire saw broken, over current and phase sequence default.
3. Use world famous electric part & optimized system, ensuring a stable performance and long lifespan.
4. With an intelligent PLC and dual inverter system, the machine can adjust cutting velocity and tension of wire saw automatically. Hence a user-friendly and highly intelligent cutting process is realized.
| Model Number | SCTSJ-45A | SCTSJ-55A | SCTSJ-75A | |
| Power of main motor | kw | 45 | 55 | 75 |
| Length of wire | m | 20-100 | 20-120 | 20-150 |
| Diameter of bead | mm | 11.5 | 11.5 | 11.5 |
| Linear velocity | m/s | 0-30 | 0-30 | 0-40 |
| Lead rail moving distance | m | 6 | 6 | 6 |
| Diameter of driving wheel | mm | Φ700 | Φ700 | Φ700 |
| Gross weight | kg | 1400 | 1500 | 1600 |
| Dimension (L x W x H) | cm | 120x120x140 | 120x120x140 | 120x120x140 |
