Small Block Cutting Machinery for Tombstone
Product feature:
The small block cutting machinery is specially for shaping stone products, such as: cutting tombstone and curb stoneFor granite&marble cutting
Cutting accuracy is higher and operating machine easily
Saving labors with automatic cutting
The machine has better cutting performance with our blades and segments
Polish&Drill
+ ![Small Block Cutting Machinery for Tombstone Small Block Cutting Machinery for Tombstone](/uploads/200706/bridge-cutting-machinery.jpg)

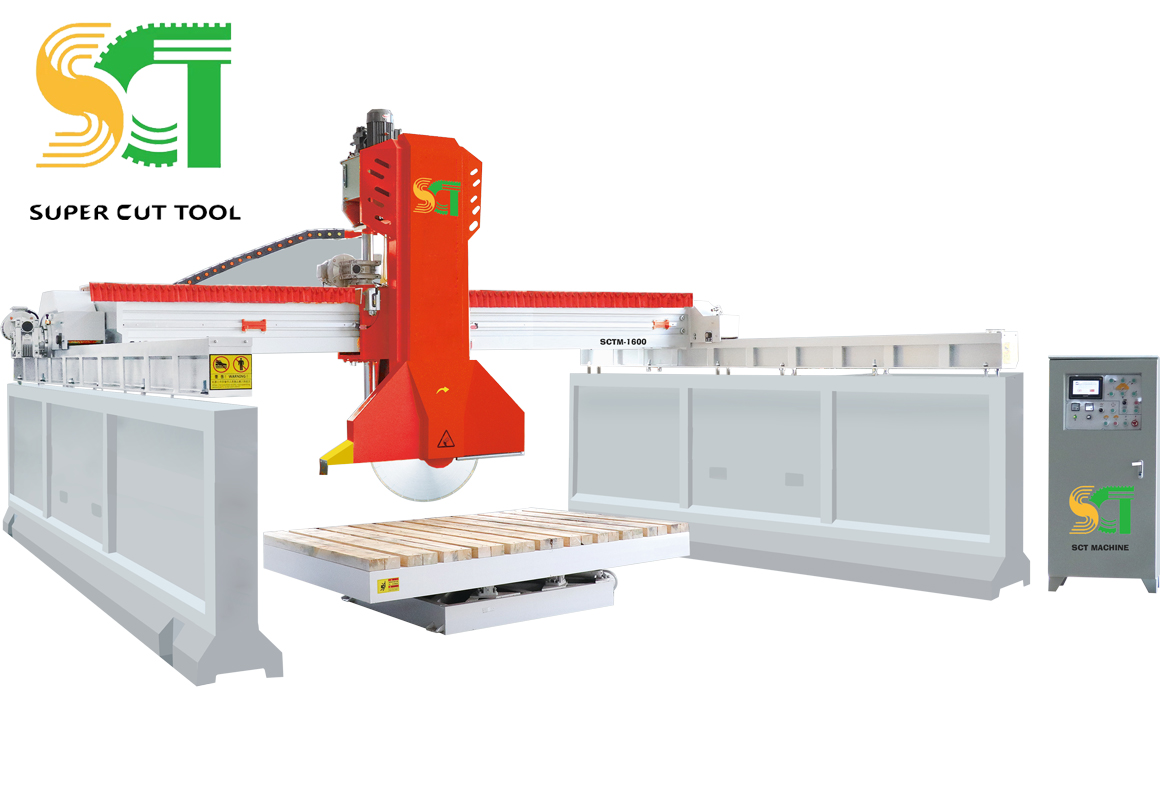

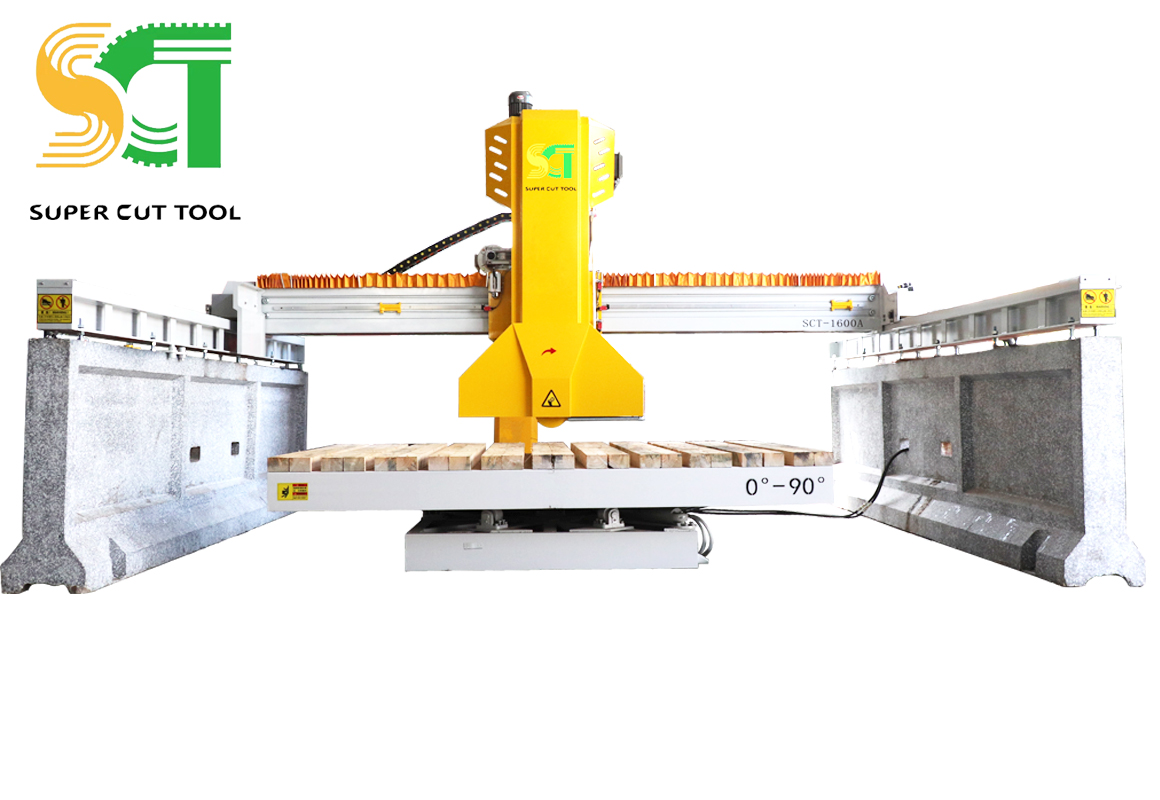

Small Block Cutting Machinery for Tombstone
Model: SCTM-1200/1600 laser bridge cutting machinery
Usage: The machine uses PLC system and Human-machine interface, combined with Ultra-high precision rotary encoder to locate, and infrared device, it uses inverter to control left-right feeding, adjust the speed according to the stone material. It uses hydraulic lifting system, and main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high stability, easy-operating to suit specially shaped stone products, tombstone and curb stone.
Specification
Model:SCTM-1200/1600 | |||
Max.Blade diameter | mm | Φ1200 | Φ1600 |
Max.vertical stroke | mm | 820 | 950 |
Worktable size | mm | 3000*2000 | |
Worktable rotation range(optional) | degree | 0°,90°/0°-360°(set up by each 45°) | |
Water consumption | m³/h | 4 | 5 |
Power of main motor | kw | 22 | |
Total power | kw | 27 | |
Dimension(L×W×H) | mm | 6400×4800×4400 | 6200*4800*5100 |
Total weight | kg | 6100 | 7100 |
More specifications can be customized according to customer needs.
