Laser bridge cutting machinery
Product features:
Cutting faster with high efficiencyCutting stone edge
Cutting accuracy is higher and operating machine easily
Saving labors with automatic cutting
The machine has better cutting performance with our segments and saw blades
Cutting
Polish&Drill
+
Mining
Machines

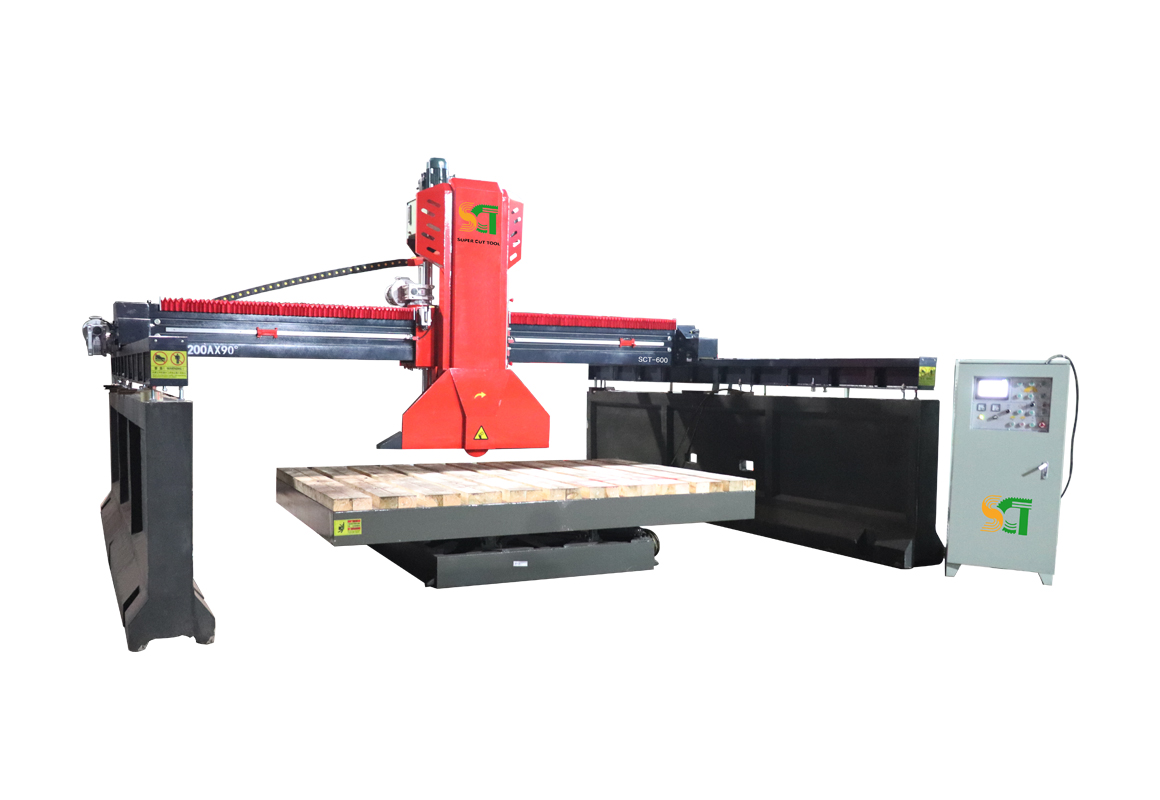

Laser bridge cutting machinery
MODEL: SCT-400/600/700(Sliding Plate Type/Lineal Guild model)
Usage: The machine uses PLC system and human-machine interface, combined with Ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, main spare parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit granite and marble with high value and big size.
Our bridge cutting machines can be divided into SCT-PLC400,SCT-PLC600 and SCT-PLC700 .

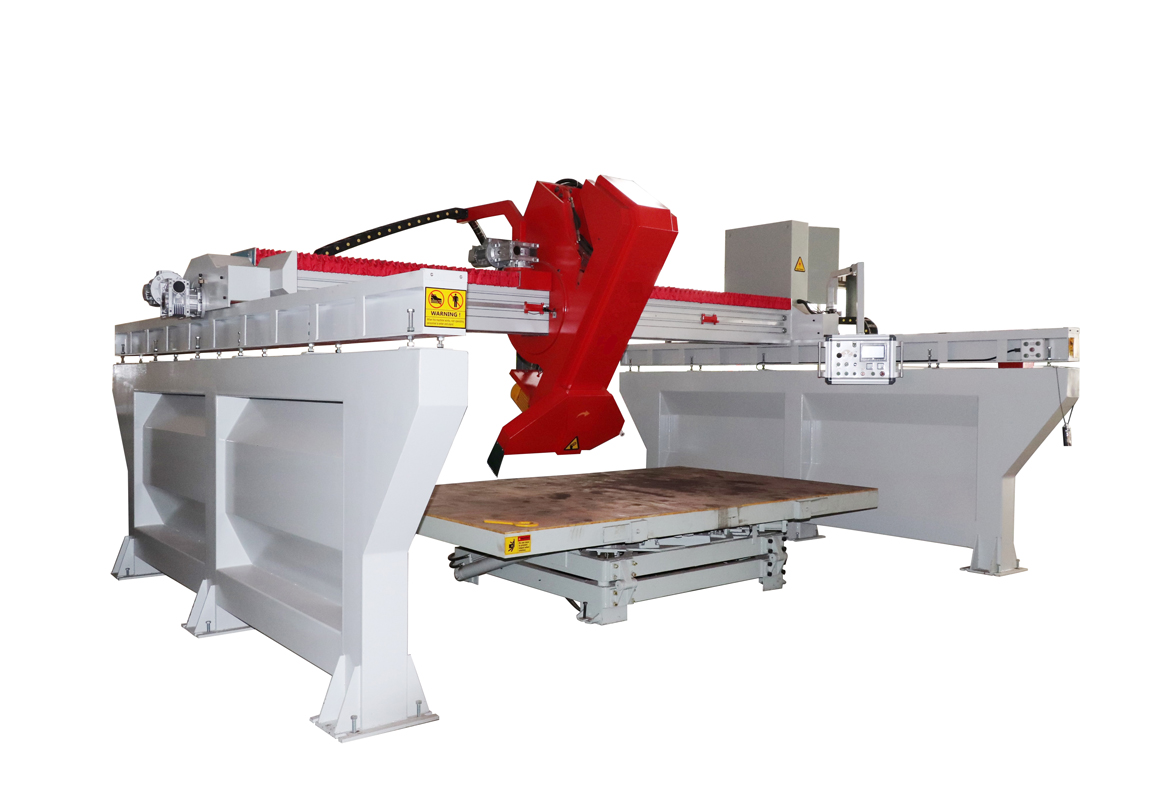

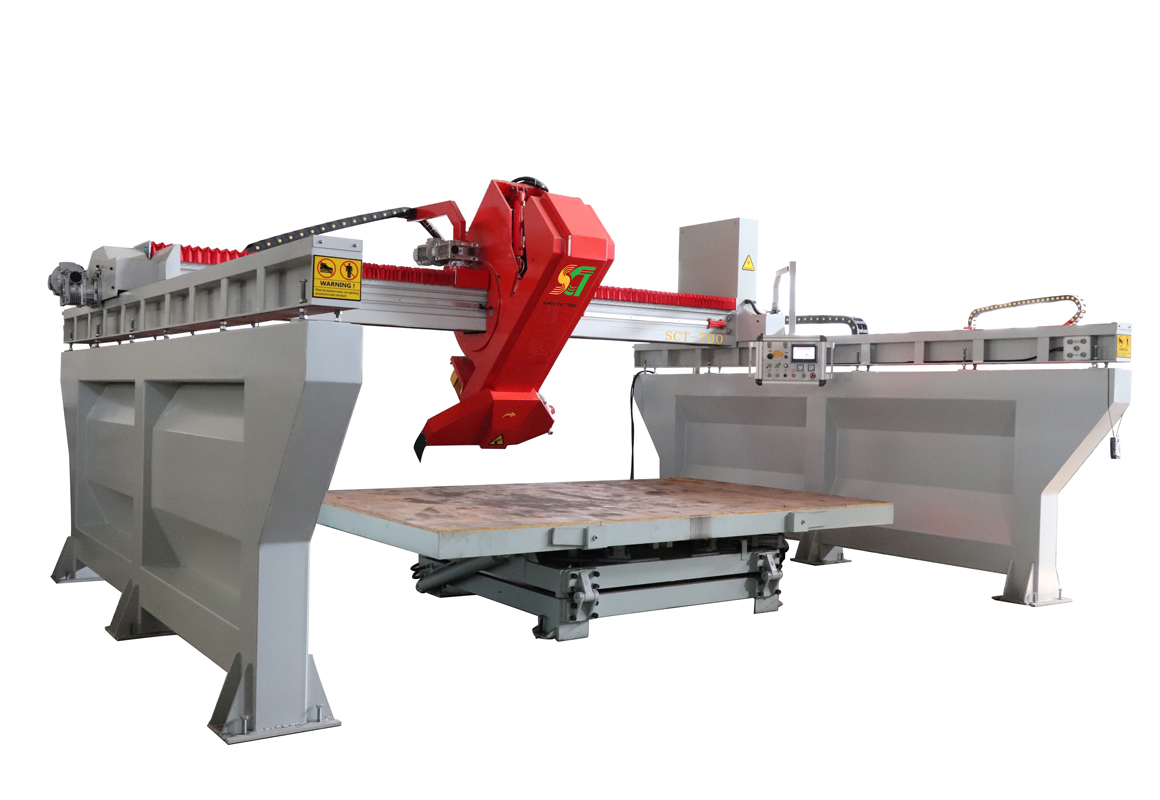

SCT-PLC700 machine's cutting head can be rotated 45 degree to process beveled stone slabs.
Advantage: Infrared bridge cutting machine will provide high cutting accuracy and efficiency.
Specification:
| Model:SCT-400/600/700 | ||
| Max.Blade diameter | mm | Φ400mm-Φ700 |
| Max.Lifting sroke | mm | 350 |
| Worktable size | mm | 3200×2000 |
| Worktable rotation range(optional) | ° | 0°- 90°/0°- 360° (Set up by each 45 degree) |
| Worktable turnover degree | ° | 0-85° |
| Max.height of cutting | mm | 180 |
| Water consumption | m³/h | 3 |
| Power of main motor | kw | 18.5 |
| Total power | kw | 24 |
| Dimension(L×W×H) | mm | 6000×4800×3300 |
| Total weight | kg | 5800 (10500kg including concrete base) |
