The composition and common specifications of diamond wire saws

Publish Date:2020-08-17

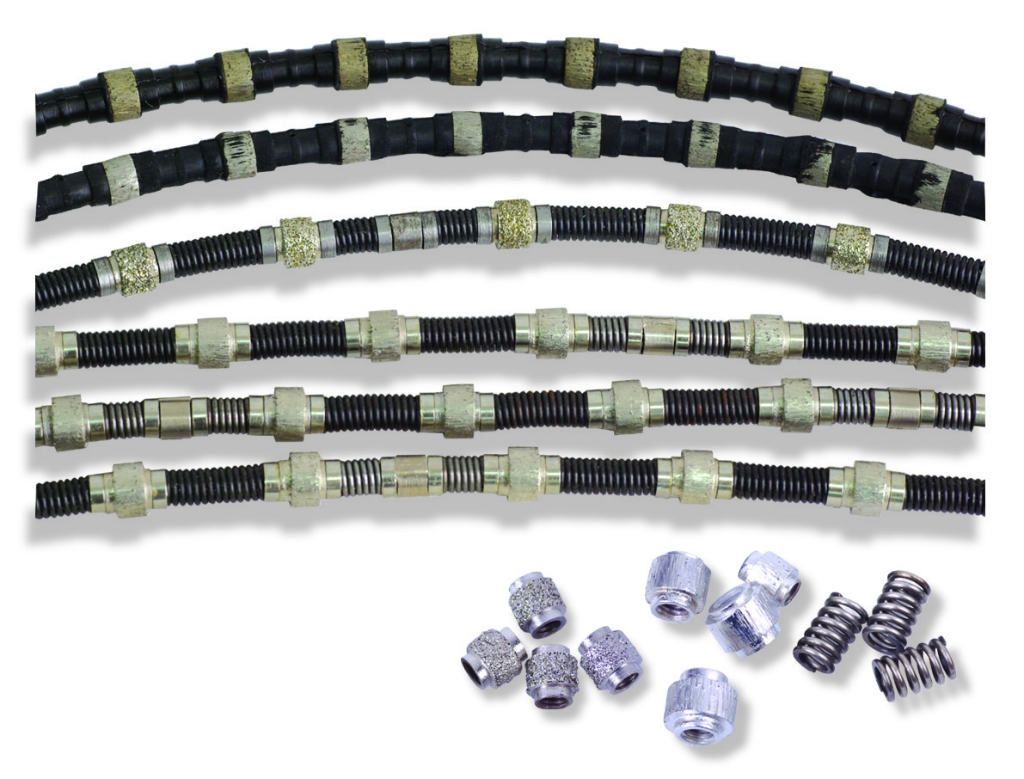

Diamond wire saw is composed of steel wire rope and beads. This is the most basic core structure. In addition to these core structures, there are some other components, such as connectors, washers, fixing rings, etc. The number of diamond beads per meter of wire saw is 33, 37, 40, etc. The number of beads depends on the cutting material and purpose. Let's take a closer look.

The diameter of diamond beads generally has the following common specifications: Φ6.3, Φ7.3, Φ8.2, Φ8.8, Φ9, Φ10.5, Φ11, Φ11.51, Φ12 and Φ12.5.

Among them, Φ6.3, Φ7.3 and Φ8.2 diameter beads are mostly used for multiwire saws, and the connecting parts will be combined with plastic, washers, and fixing rings. Generally, the combined wire saw uses 37 or 39 beads per meter.

Then Φ10.5, Φ11, Φ11.5, Φ12 and Φ12.5 are often used in mining. It is worth mentioning that the mine wire saw of Φ10.5 can only be used for the mining of marble and limestone mines. Mine wire saws mostly use rubber as the connecting piece. A one-meter marble wire saw uses 26, 28 or 37, 40 beads, while a one-meter granite wire saw requires 40 beads.

Most of the plastic connecting wire saws of Φ8.5, Φ9, Φ10.5, and Φ11 are used for processing special-shaped stone, such as arc-shaped plates, hollow-shaped stone carvings and so on. Special-shaped wire saws generally use 33 (special-shaped marble) and 37 (special-shaped granite) beads per meter.

Finally, there is a wire saw for cutting reinforced concrete. Most of the concrete wire saw has a spring inside and a rubber connection on the outside. The specification is similar to that of a mine wire saw. There are 40 beads per meter.

Diamond wire saw, diamond beads, wire saw for stone cutting
